Cryptography and Security

How to keep your data safe (a bit)

Chihuahua Security

Chris Wilson, Aptivate, AfNOG 2014

1 / 73

Credits

Based on presentations by:

  • Marcus Adomey (AfChix, Malawi, 2011)
  • NSRC (NSRC-TENET Workshop, South Africa, 2013)

You can access this presentation at: http://afnog.github.io/sse/crypto/presentation

Download or edit this presentation on GitHub.

2 / 73

Conventions

Commands to enter are shown like this:

openssl smime -encrypt -binary -aes-256-cbc -in message3.txt -out message3.txt.enc yourpartner.crt.pem
openssl smime -decrypt -binary -in encrypted.zip.enc -out decrypted.zip -inkey private.key -passin pass:your_password

Please note:

  • Long command lines are wrapped for readability.
  • Each ▸ triangle marks the start of a single command.
3 / 73

What we can talk about

  • What is security? (theory)
  • What is cryptography? (theory)
  • Public and private key crypto
  • Hash functions
  • Generating SSL certificates
  • Running a mini Certificate Authority (todo)
  • Practical exercises
4 / 73

What do you care about?

What is security?

5 / 73

What do you care about?

What is security?

  • Trying to prevent some particular event.

What do you want to prevent? What is the threat?

6 / 73

What do you care about?

What is security?

  • Trying to prevent some particular event.

What do you want to prevent? What is the threat?

  • Is your data valuable to someone else?
  • Are your systems valuable to someone else?
  • Can someone cause expensive damage (e.g. death)?
  • What prevents them from doing that?
7 / 73
  • Is your data valuable to someone else?
    • Sell it?
    • Blackmail?
    • Steal money or resources?
    • Embarrass somebody important?
    • Threaten to or actually cause downtime?
  • Are your systems valuable to someone else?
    • CPU time?
    • Disk space?
    • Network bandwidth?
    • IP addresses?
    • Access to other systems?
  • What prevents them from doing that? - brainstorm

Examples of security measures

Make a list of measures that you actually use.

8 / 73

Examples of security measures

Make a list of measures that you actually use.

For example:

  • Locks on doors
  • Security lights
  • Video cameras
  • Passwords
  • Dual signatures
  • Thumb prints
  • Credit card PIN
  • Credit limits
9 / 73

How secure are you?

How would you crack the defensive measures that we just listed?

10 / 73

Absolute security

The only truly secure system is one that is powered off, cast in a block of concrete and sealed in a lead-lined room with armed guards - and even then I have my doubts. - Gene Spafford

Security is impossible if:

  • some users have additional rights (privileges)
  • AND you cannot distinguish users using only laws of physics
  • OR you cannot make it physically impossible to violate policy
11 / 73

Living with insecurity

  • Can't be completely secure
  • Can make individual attacks:
    • More expensive
    • More risky
    • Less rewarding
  • Beware the side effects (systems harder to use)
  • Increase transparency
    • more eyes on attackers
    • more understanding of what security means
12 / 73

Reducing specific risks

  • Use encrypted communications
  • Use multi-factor authentication
  • Verify authenticity of messages
  • Reduce risks (don't keep sensitive data)
  • Increase risks for attackers (monitoring and logging)
13 / 73

Goals of system security

Why do you lock your doors?

  • Confidentiality
  • Integrity
  • Authentication
    • Access Control
    • Verification
    • Non-repudiation
  • Availability
14 / 73

Confidentiality (secrecy)

15 / 73

Confidentiality (secrecy)

  • Ensuring that no one can read the message except the intended receiver.
  • Data is kept secret from those without the proper credentials, even if that data travels through an insecure medium.
  • How does this prevent
16 / 73

Integrity (anti-tampering)

17 / 73

Integrity (anti-tampering)

  • Assuring the receiver that the received message has not been altered in any way from the original.
  • Preventing unauthorised or undetected changes to the protected system.
18 / 73

Authentication

19 / 73

Authentication

  • The process of proving one's identity.
    • The primary forms of host-to-host authentication on the Internet today are name-based or address-based, both of which are notoriously weak.
  • Cryptography can help establish identity for authentication purposes (how?)
20 / 73

Authentication

  • The process of proving one's identity.
    • The primary forms of host-to-host authentication on the Internet today are name-based or address-based, both of which are notoriously weak.
  • Cryptography can help establish identity for authentication purposes (how?)

    • Can prove that you possess a secret
    • Or that you spent a LOT of energy to brute-force it
21 / 73

Non-repudiation

22 / 73

Non-repudiation

  • A mechanism to prove that the sender really sent this message
23 / 73

How do we use cryptography?

24 / 73

How do we use cryptography?

  • ssh/scp/sftp
  • SSL/TLS/https
  • pops/imaps/smtps
  • VPNs
  • dnssec
  • wep/wpa
  • digital signatures (software)
  • certificates and pki
  • DRM
  • disk encryption
25 / 73

Applied Cryptography

Written by Bruce Schneier. Perhaps the best book around if you want to understand how cryptography works.

https://www.schneier.com/book-applied.html

26 / 73

Cryptographic Tools

  • hashes/message digests
    • MD5, SHA1, SHA256, SHA512
    • collisions
  • entropy (randomness)
  • keys
    • symmetric/asymmetric (public/private)
    • length
    • creation
    • distribution
  • ciphers
    • block/stream
    • AES, 3DES, Blowfish, IDEA
  • plaintext/ciphertext
  • password/passphrase
27 / 73

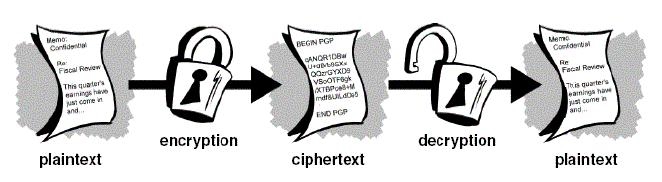

Ciphers → Ciphertext

Cryptography process

The foundation of all of cryptography:

  • We start with plaintext. Something you can read.
  • We apply a mathematical algorithm (cipher) to it.
  • The plaintext is turned in to ciphertext.
  • Almost all ciphers were secret until recently.
  • Creating a secure cipher is HARD.
28 / 73

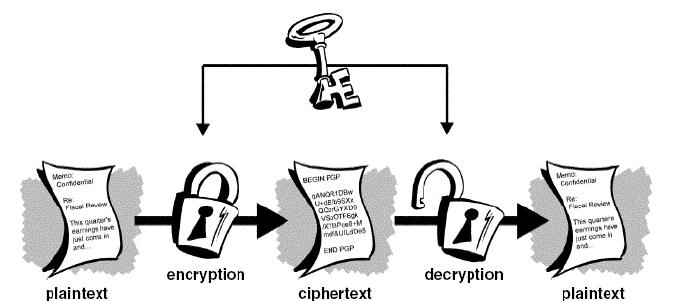

Symmetric Ciphers (Conventional)

Symmetric decryption

The same key is used to encrypt the document before sending and to decrypt it once it is received.

  • Lost key = compromised/lost data
  • This type of cipher system is efficient for large amounts of data
  • Most are relatively simple to understand and implement
29 / 73

Common Symmetric Ciphers

  • DES (56 bits, 1977)
  • 3DES (112 bits, 1998)
  • AES (128-256 bits, 2001)
  • IDEA (128 bit, 1991, patented until 2012)
30 / 73

Problems with Conventional Cryptography

Key Management

  • How to get the same key to all users without risk of compromise?
  • This is why "Public Key Cryptography" became popular.
31 / 73

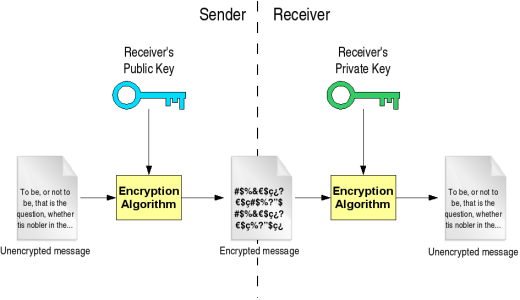

Public Key Cryptography

Different related keys are used to encrypt the document before sending and to decrypt it once it is received.

  • Usually one key is public and the other private
    • Anyone → private key holder (confidentiality)
    • Private key holder → anyone (integrity)
  • Examples: RSA, DSA

Public key cryptography

32 / 73

Problems with Public Key Crypto

  • Inefficient for large amounts of data
  • Possible to brute-force the private key for a public key
  • Theoretically possible to convert a public key back to private

Solutions?

33 / 73

Problems with Public Key Crypto

  • Inefficient for large amounts of data
  • Possible to brute-force the private key for a public key
  • Theoretically possible to convert a public key back to private

Solutions?

  • Use public key crypto to encrypt the secret used to encrypt document
  • Longer keys are harder to brute-force (e.g. 2048 bits, 4096 bits)
    • Notice how long these are compared to symmetric cipher keys!
  • Use a well-designed (unbroken) algorithm
34 / 73

Hash Functions

Algorithms that take any amount of input and return a fixed-size output string, which is called the hash value or hash.

Hash function

35 / 73

Ideal hash function

Has these properties:

  • easy to compute the hash value for any given message
  • infeasible to find a message that has a given hash
  • infeasible to modify a message without changing its hash
  • infeasible to find two different messages with the same hash

What does infeasible mean?

36 / 73

Perfect hash function

A hash function that maps each valid input to a different hash value is said to be perfect.

  • What does that mean?
  • How realistic is that?
37 / 73

Practicals

38 / 73

Hash Practical 1

Exercise

Using this hash function:

  • Add up all the letters and digits in the message (A=1, B=2, etc)

Perform the following exercise:

  • Write a short message to a partner
  • Compute the hash on a separate paper
    • Avoid giving away your working to make it harder
  • Give the message and hash to your partner to verify
  • Verify the message from your partner
39 / 73

Hash Practical 1

Analysis

Does this hash function meet our ideal properties?

  1. easy to compute the hash value for any given message
  2. infeasible to find a message that has a given hash
  3. infeasible to modify a message without changing its hash
  4. infeasible to find two different messages with the same hash
40 / 73

Hash Practical 1

Analysis

Not really!

  1. Easy to compute.
  2. Easy to find another message with the same hash (string of 1s)
  3. Easy to modify a message without changing its hash (rearrange the letters)
41 / 73

Hashes in real life

ftp://ftp.freebsd.org/pub/FreeBSD/releases/i386/i386/ISO-IMAGES/10.0/

  • Look at the CHECKSUM.MD5 and CHECKSUM.SHA256 files.
  • What do they tell you?
42 / 73

Hashes in real life

ftp://ftp.freebsd.org/pub/FreeBSD/releases/i386/i386/ISO-IMAGES/10.0/

  • Look at the CHECKSUM.MD5 and CHECKSUM.SHA256 files.
  • What do they tell you? The checksums of the large binary files in that directory.

  • Do you actually need to download this file from ftp.freebsd.org?

  • How would you check that your download is complete and not corrupt?
  • How long are the hashes? How secure are they?
43 / 73

Hash Practical 1

Verifying downloads

fetch http://mini1.sse.ws.afnog.org/~inst/FreeBSD-10.0-RELEASE-i386-bootonly.iso
md5 FreeBSD-10.0-RELEASE-i386-bootonly.iso
sha256 FreeBSD-10.0-RELEASE-i386-bootonly.iso
  • Does it match?
  • Why would you do this?
  • What speed did you get?
44 / 73

Hash Practical 2

Hashing your own message

  • Write a message to your partner in a text file (e.g. message1.txt)
  • Use the sha256 command to generate a signature for the file.
  • Use scp to copy the file to your partner's computer:
scp message1.txt afnog@pcYY.sse.ws.afnog.org:/tmp
45 / 73

Hash Practical 2

Verifying the Hash

  • You will find your partner's message in the /tmp directory.
  • Tell your partner the first four letters of the hash.
  • Check the hash of your partner's message.
  • Make a small change to the message. How does the hash change?
46 / 73

Encryption Practical 1

Basic Encryption

  • Write a message to your partner in a text file (e.g. message2.txt)
  • Choose your encryption passphrase to share with your partner
  • Encrypt your message with openssl:
openssl aes-256-cbc -a -salt -in message2.txt -out message2.txt.enc
47 / 73

Encryption Practical 1

Basic Decryption

  • Have a look at the output file (message2.txt.enc)
  • Send the file to your partner
  • Decrypt the message from your partner:
openssl aes-256-cbc -d -a -in message2.txt.enc -out message2.txt.new
48 / 73

Credit: http://tombuntu.com/index.php/2007/12/12/simple-file-encryption-with-openssl/

Encryption Practical 1

Questions

  • Was the previous exercise using symmetric or asymmetric crypto? How do you know?
  • Using public key crypto?
  • What algorithm did we use?
49 / 73

Encryption Practical 2

Certificate Generation

  • If you don't already have a certificate, you need one.
  • We can make self-signed certificates for free:
openssl req -x509 -new -out yourname.crt.pem -keyout yourname.key.pem

Questions:

  • What are the output files?
  • How long is the key?
  • What is the passphrase for?
50 / 73

Encryption Practical 2

Certificate Exchange

  • Send the certificate (NOT the key) to your partner.
  • Examine the certificate sent by your partner:
openssl x509 -in yourpartner.crt.pem -noout -text

Questions:

  • How do you know that you're looking at the correct certificate?
  • What can you do with this certificate?
  • Why do we not send the key file to our partner?
51 / 73

Encryption Practical 2

Encryption

  • Write a message to your partner in a text file (e.g. message3.txt)
  • Encrypt your message with openssl:
openssl smime -encrypt -binary -aes-256-cbc -in message3.txt -out message3.txt.enc yourpartner.crt.pem

Questions:

  • Why do we use our partner's certificate, not our own?
  • What can you do with this file?
  • Who can read the file?
52 / 73

Credit: http://stackoverflow.com/a/12233688/648162

Encryption Practical 2

Decryption

  • Have a look at the output file (message2.txt.enc)
  • Send the file to your partner
  • Decrypt the message from your partner:
openssl smime -decrypt -binary -in message3.txt.enc -out message3.txt.dec -inkey yourname.key.pem

Questions:

  • Why do you need to enter your passphrase?
53 / 73

Encryption Practical 2

Questions

  • How could an attacker break this encryption?
  • How much would it cost?
  • How do we verify the authenticity of the message?
  • Where are the weak points in this process?
54 / 73

Encryption Practical 2

Weaknesses

  • Certificate exchange
  • Passphrase memory
  • Passphrase entry
  • Decrypted file stored on disk
  • Brute force attack on passphrase
  • Brute force attack on key
55 / 73

Passwords

XKCD on Password Strength

56 / 73

Secure Shell

Host Keys

Why do we verify host keys?

57 / 73

Secure Shell

Host Keys

Why do we verify host keys?

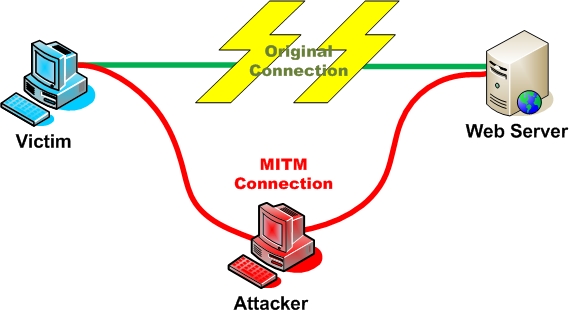

A Man-in-the-Middle Attack

  • Avoid giving your password to an attacker (why?)
  • Avoid leaking information to an attacker (how and why?)
58 / 73

Secure Shell

Host Key Demonstration

When you SSH to your partner's computer for the first time, what do you see?

59 / 73

Secure Shell

Host Key Demonstration

When you SSH to your partner's computer for the first time, what do you see?

The authenticity of host 'pc34.sse.ws.afnog.org (196.200.219.134)' can't be established. ECDSA key fingerprint is ae:09:ce:83:09:fc:d5:ca:69:ae:df:7d:c6:92:1e:e5. Are you sure you want to continue connecting (yes/no)?

What should you do about it?

ssh-keygen -lf /etc/ssh/ssh_host_ecdsa_key.pub
60 / 73

Secure Shell

Key Caching

What happens after the first time you connect? Why?

61 / 73

Secure Shell

Key Caching

What happens after the first time you connect? Why?

  • If you answer Yes, the host key is cached in ~/.ssh/known_hosts.
  • No message is displayed if the key has not changed.
62 / 73

Secure Shell

Attack Demonstration

To see what happens, replace your host key:

sudo /etc/rc.d/sshd keygen
  • Wait until your partner has replaced their host key
  • Try connecting to their virtual machine
  • What happens?
63 / 73

Secure Shell

@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@ WARNING: REMOTE HOST IDENTIFICATION HAS CHANGED! @
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
IT IS POSSIBLE THAT SOMEONE IS DOING SOMETHING NASTY!
Someone could be eavesdropping on you right now (man-in-the-middle attack)!
It is also possible that a host key has just been changed.
The fingerprint for the ECDSA key sent by the remote host is
ae:09:ce:83:09:fc:d5:ca:69:ae:df:7d:c6:92:1e:e5.
Please contact your system administrator.
Add correct host key in /home/chris/.ssh/known_hosts to get rid of this message.
Offending ECDSA key in /home/chris/.ssh/known_hosts:228
remove with: ssh-keygen -f "/home/chris/.ssh/known_hosts" -R pc34.sse.ws.afnog.org
ECDSA host key for pc34.sse.ws.afnog.org has changed and you have requested strict checking.
Host key verification failed.
64 / 73

Secure Shell

Implications

  • When is this useful?
  • When is it a problem?
  • How would you fix it:
    • On the client?
    • On the server?
65 / 73

Secure Shell

Recovery

For now, fix it on your client by running:

ssh-keygen -R pcYY.sse.ws.afnog.org

And test that you can SSH without this warning.

  • What do you see instead, and why?
66 / 73

Secure Shell

Key Authentication

  • What is the biggest vulnerability in SSH?
  • What can we do about it?
67 / 73

Secure Shell

Key Authentication

  • What is the biggest vulnerability in SSH?
  • What can we do about it?

Passwords, and don't use them!

  • or combine them with something else (what's that called?)
68 / 73

Two-factor authentication.

Secure Shell

Key Generation

If you don't already have an SSH key, generate one:

ssh-keygen
  • Make sure you use a passphrase!
  • DO NOT use afnog as the passphrase!

Questions

  • Why is a key with no passphrase dangerous?
  • Why is a passphrase (on a key) better than a password (on an account)?
  • What are the disadvantages?
  • Why not use afnog as the passphrase?
69 / 73

Secure Shell

Answers

  1. Unprotected key allows login to server with no password!
  2. The passphrase is not sent to the server, only used to decrypt the key.
  3. You need an agent to cache your passphrase and forward through servers.
  4. So you can tell whether you're being asked for the password or the passphrase!
70 / 73

Secure Shell

Key Distribution

Copy the key to your partner's server:

ssh-copy-id -i ~/.ssh/id_rsa.pub pcYY.sse.ws.afnog.org

Now try logging in to their server. What's different?

ssh pcYY.sse.ws.afnog.org
71 / 73

Secure Shell

Key Distribution

Copy the key to your partner's server:

ssh-copy-id -i ~/.ssh/id_rsa.pub pcYY.sse.ws.afnog.org

Now try logging in to their server. What's different?

ssh pcYY.sse.ws.afnog.org

You should be prompted for your passphrase instead of a password:

Enter passphrase for key '/home/afnog/.ssh/id_rsa':

72 / 73

FIN

Any questions?

73 / 73

Credits

Based on presentations by:

  • Marcus Adomey (AfChix, Malawi, 2011)
  • NSRC (NSRC-TENET Workshop, South Africa, 2013)

You can access this presentation at: http://afnog.github.io/sse/crypto/presentation

Download or edit this presentation on GitHub.

2 / 73
Paused

Help

Keyboard shortcuts

, , Pg Up, k Go to previous slide
, , Pg Dn, Space, j Go to next slide
Home Go to first slide
End Go to last slide
b Toggle blackout mode
f Toggle fullscreen mode
c Clone slideshow
p Toggle presenter mode
w Pause/Resume the presentation
t Restart the presentation timer
?, h Toggle this help
Esc Back to slideshow
